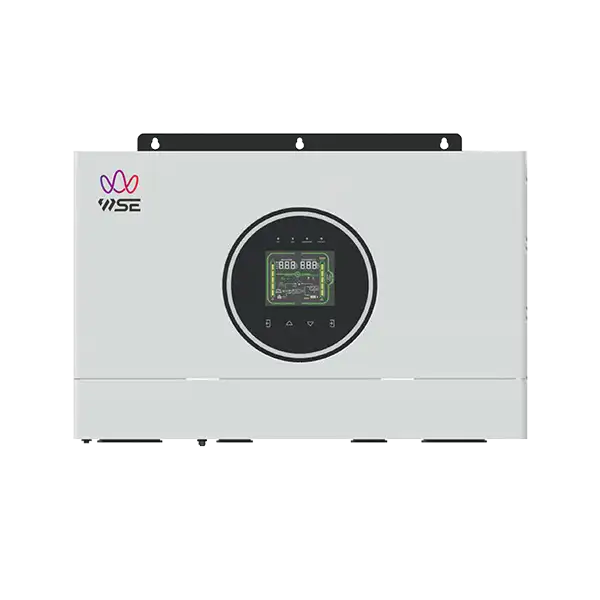

WSL-8~12K1P-BL
Off-grid Inverter 8/10/12kW
40~60V
Battery Voltoge Range
280A
Max Charge/Discharge Current
4ms
Transfer Time
2
No.of MPPT Tracker/Strings
90-450V
MPPT Voltage Range
130% ~200%
Overload Capacity
Product Features
Oversizing Ratio
Higher PV/AC ratio up to 1.5, gallowing greater energy harvest
Smart Load Management
Dual AC outputs to power loads on demand priority
Exceptional Load-carrying Capability
Support battery discharge current of up to 280A Support higher loads powered by battery only
Generator Input
Equipped with GEN port to connect with diesel generator
Parallel Connection
Support parallel connection up to 9 units
Seamless Switchover
UPS-level switching time≤4ms
Powerful Instant Overload Capacity
Support 2 times the rated power for 5 seconds in off-grid mode
Superior High-Temperature Stability
Allow full-power output up to 12kW under high-temperature conditions
Application Scenario
Hose
Farm
Telecom
Countryside
Island
